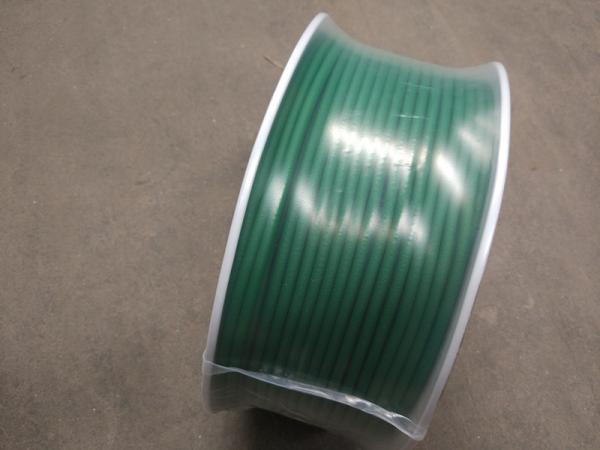

Polyurethane (PU) Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other
characteristics:
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
| Items NO. | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled |
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 A | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95A | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90A | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90A | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90A | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90A | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90A | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90A | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90A | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90A | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90A | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90A | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90A | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90A | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90A | 30 |
